VENTRAC Mowers - Side Discharge 72" HM722

Ventrac Mowers - Side Discharge 72\
Model:
39.55106HM722 COMPLETE MOWER DECK
Accessory Options:
39.55151 HM, KIT MULCHING HM/HP720/722
Length:58 in
Width:85 in
Height:16 in
Weight:450 lbs
Width of Cut:72in
Download Manual:
V-Plus Warranty:
* Download Warranty Info
Residential: 3 year*
Commercial: 2 year *

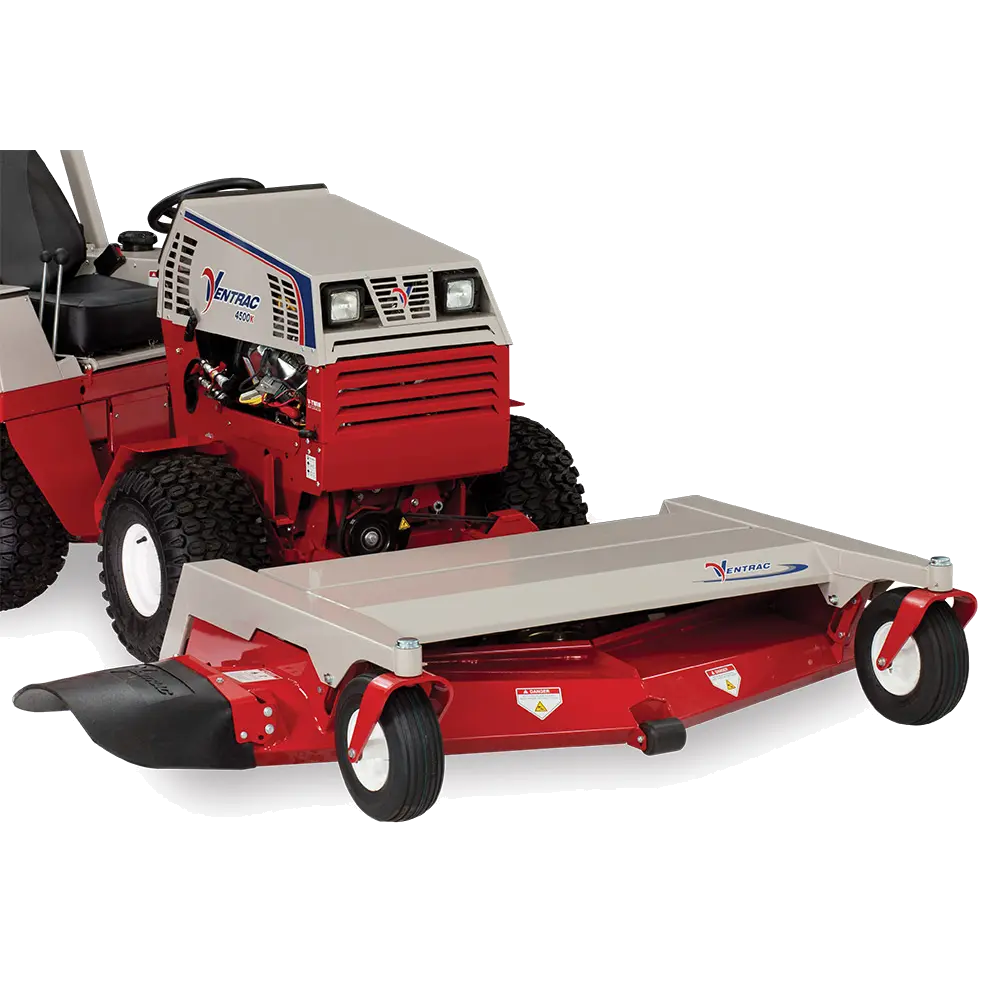

The Ventrac HM722 Mower Deck utilizes a rugged all steel frame design, which suspends the Ventrac's progressive discharge deck. This design gives you a high efficiency grass discharge for a better quality of cut by moving more grass efficiently through the deck tunnel. With the removal of two pins beneath the cross frame, the deck can be easily tilted to a near vertical position for maintenance and storage.

The HM722 deck offers full-width rear rollers with large pneumatic front swivel caster tires to float over the terrain independent of the tractor. Engage the tractor's integrated adjustable weight transfer system, (option on the 4100 series) which transfers a percentage of the mower weight back to the tractor, for increased traction and stability on slopes and inclines.

The HM722 deck is a 72-inch mower which is offset to the left side 6.5 inches. This aids in mowing along ditches, ponds and trimming around obstacles, keeping the tractor on solid ground. The offset also makes for a smaller cutting radius increasing productivity.

The LAS Linear Adjustment System, provides cutting height selections between 1 3/4 to 4 3/4 inches (4.5 to 12 cm). A single hand height adjustment allows for an effortless change in cutting height. A slide release allows the handle to be returned to the deck level preventing it from catching on low obstacles.

The Ventrac HM722 finish mower features full width rollers for exceptional yard striping. This professional grade mower is built to give you maximum performance and productivity.
