About NX340 Snow Blower

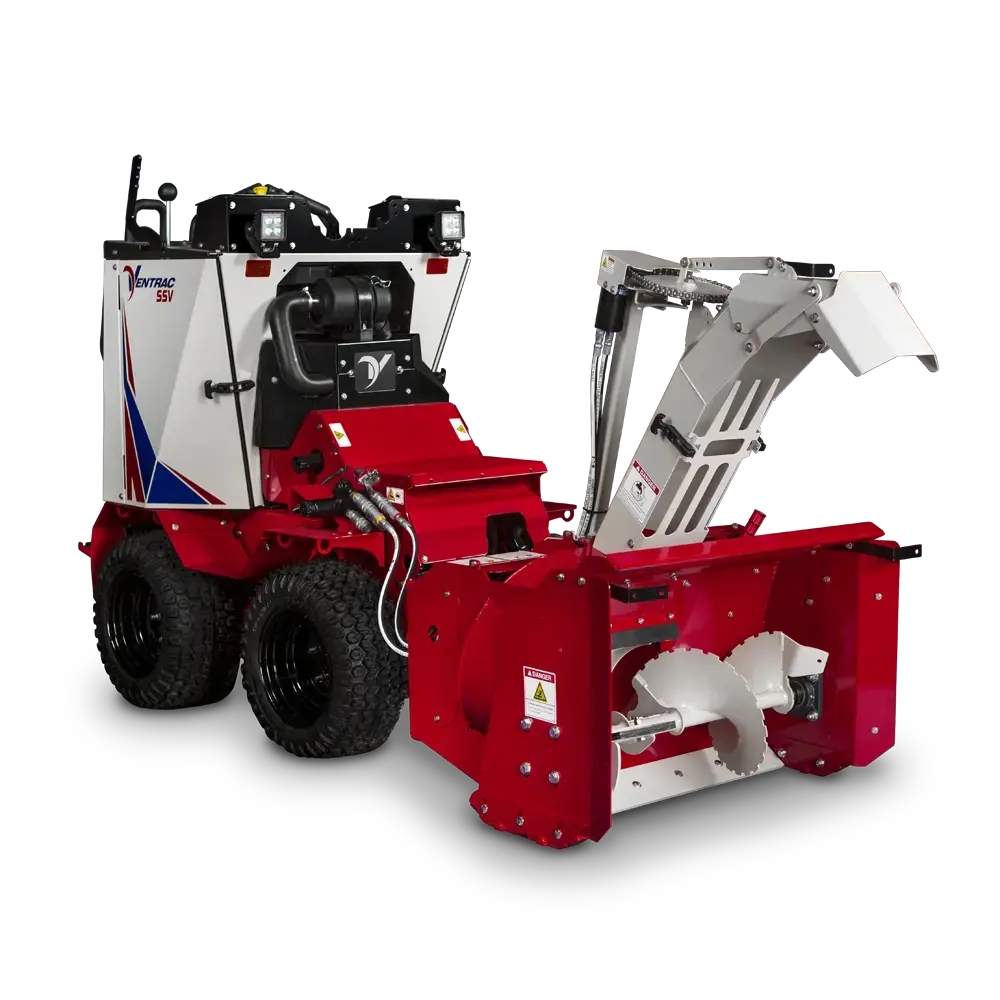

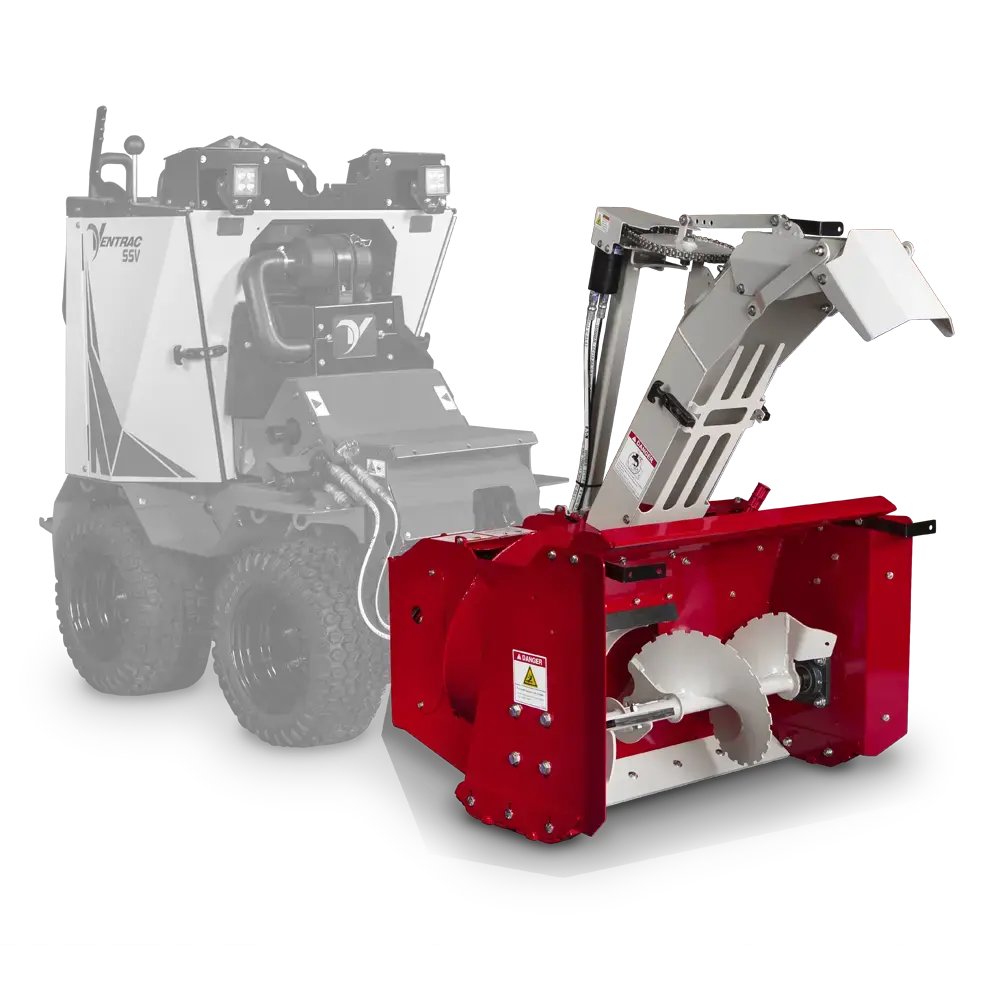

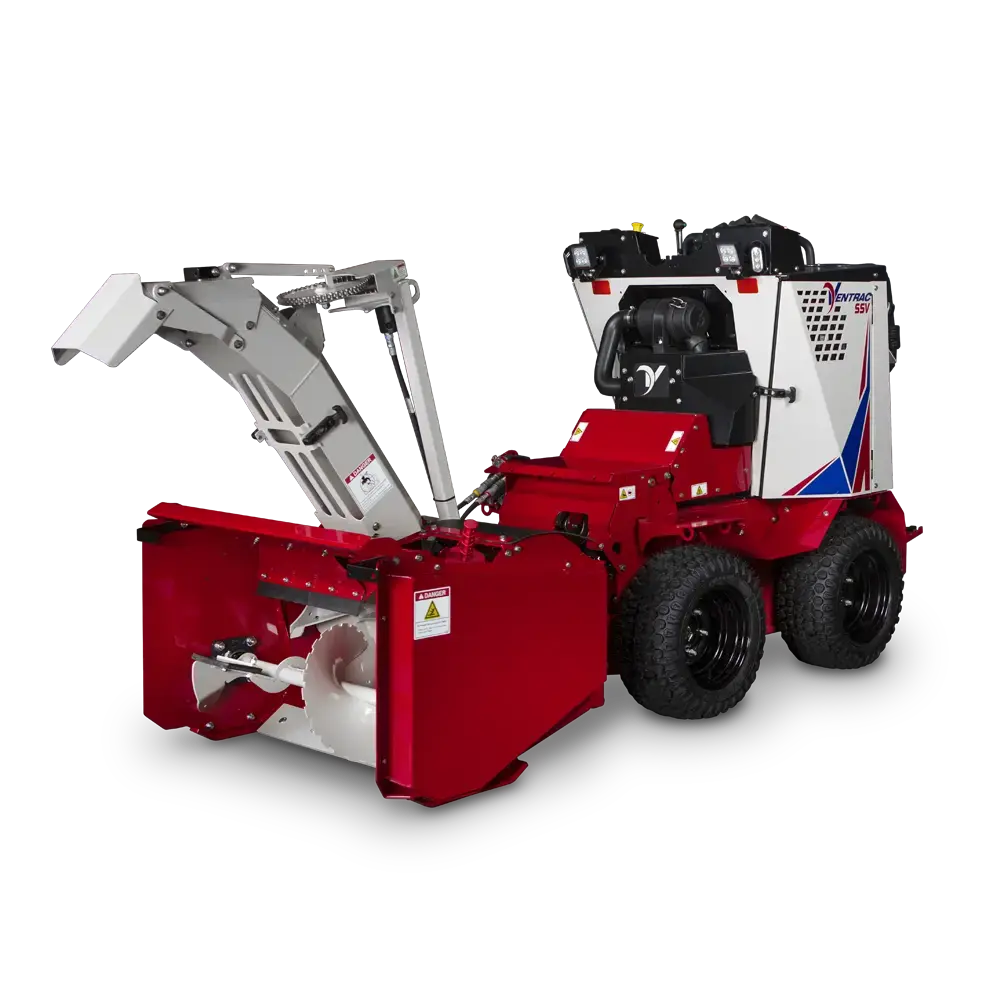

The 34" wide Ventrac NX340 Snow Blower is built for commercial snow clearing operations of sidewalks, driveways, and other areas. A two stage snow blower, the NX340 features a 12-3/16" diameter solid auger for best snow transfer, a large 18" diameter fan, and the ability to move pounds of snow per minute at distances up to 30 feet. Standard features include adjustable cast iron skid shoe discs at the rear, high carbon hardened steel shoes at the side, and a reversible high carbon hardened steel cutting edge.
The hydraulically activated discharge chute can rotate 228 degrees, all from the convenience of Ventrac's exclusive S.D.L.A. control system. Chute deflection is manually adjustable. An electric chute deflection controller is optional.
Simple Start
NX340 Snow Blower
Join Aaron as he guides you through attachment operation with helpful tips for real-world use.
View All Simple Start Videos
Base Specifications
Info
Dimensions
Front Mount
SSV Mount System
Dimensions
Length
47 in
Overall Width
34-1/4 in
Height
51-1/2 in
Weight
350 lbs
General
Blowing Distance
30 ft depending on conditions
Chute Rotation
228 °
Auger Diameter
12-3/16 in
Main Auger RPM
180 RPM based on 3,600RPM
Directional Control
Hydraulic
Fan Diameter
18 in
Fan RPM
750 RPM based on 3,600RPM
Accessories for NX340 Snow Blower
- 70.8192 KIT, 12V ACTUATOR KJ/NX/NJ
-
70.6006 KIT, 12V FRONT NT - 70.8188 KIT, DEEP SNOW NX340
Videos
How To Hook Up Attachments To The Sidewalk Snow
Properly attaching an implement to the Ventrac Sidewalk Snow Vehicle can be done in a minute or less. This is a valuable feature when the snow is coming down and you need to get a job done quickly and efficiently.When appropriately used, the quick attach system is handy during the many different stages of a snow storm.
Learn More
34" Commercial Snow Blower
The SSV Snow Blower is commercial-grade durability at its best. It was important when developing this attachment to be as durable and aggressive as it is proportionate.
Learn MoreDownloads for NX340 Snow Blower
V-Plus Warranty:
Commercial: 2 year*
