About LB540 Broom

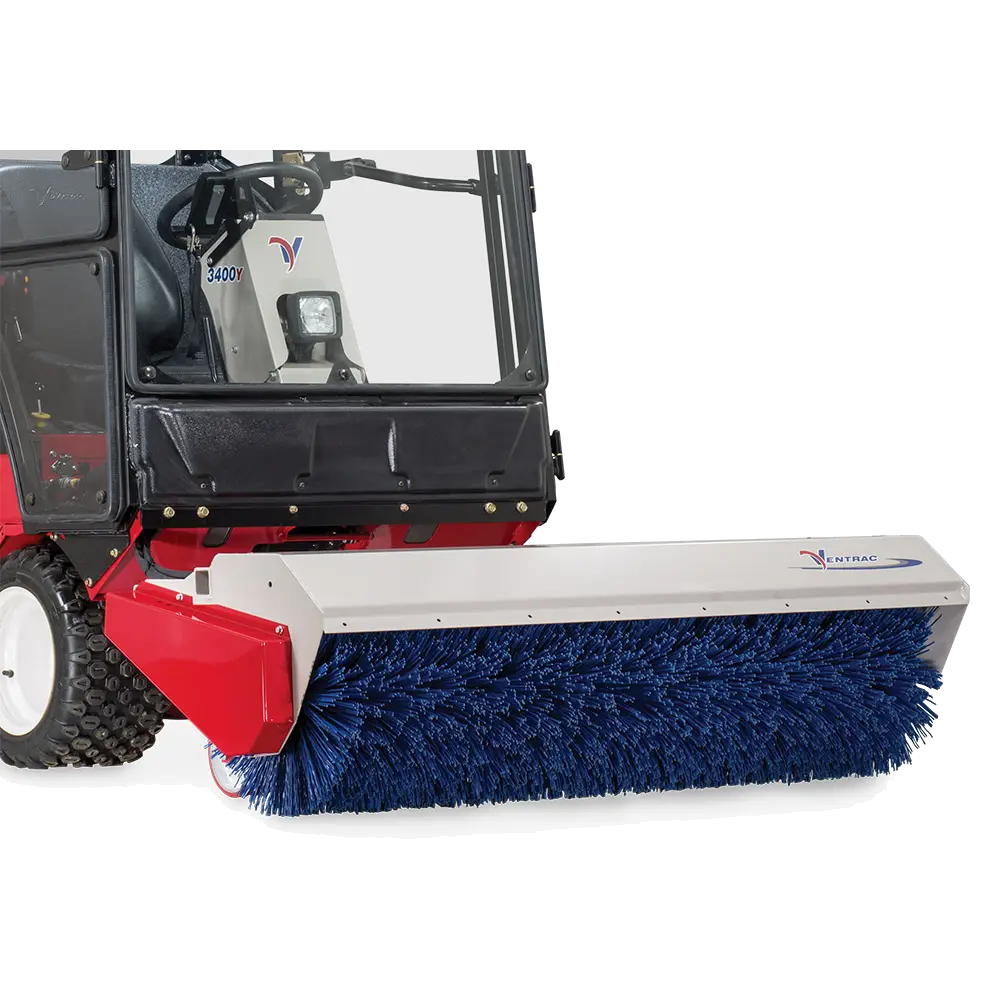

The LB540 Power Broom is designed for the sweeping and removal of snow, leaves, dirt, light gravel, and other materials from parking lots, sidewalks, and other surfaces. Heavy duty nylon bristles make short work of any clean up job without damaging the surface below.
A hydraulic cylinder angles the broom left or right from the operator's seat. Adjustable gauge wheels set the height of work for precise adjustment. Optional outrigger wheels allow for controlled adjustment when de-thatching turf. An optional front debris curtain is available for less over throw of material.
Simple Start
LB540 Broom
Join Aaron as he guides you through attachment operation with helpful tips for real-world use.
View All Simple Start Videos
Base Specifications
Info
Category
Front Mount
3000 Series Mount
Dimensions
Working Width
54 in
Length
461⁄2 in
Overall Width
601⁄2 in
Height
181⁄2 in
Weight
240 lbs
Shipping Dimensions(LWH)
63x471⁄2x221⁄2 in
Crated Weight
333 lbs
General
Work Width
54 in
Broom Diameter
16 in
Rotation
Forward
Broom Speed
300 RPM @3200 engine RPM
Accessories for LB540 Broom
- 70.8029 KIT, BELTING CURTAIN FRONT, LB
- 39.35403 KIT, OUTSIDE GAUGE WHEELS LB
Videos
Top Snow Contractors Discuss Sidewalk Management
Professional snow contractors are finding that Ventrac is an effective and affordable sidewalk snow removal.
Learn More
Sweeping Gravel Out of Grass | Spring Clean Up
Let's make life easier, not harder. When you've got the right tool for the job, no hand labor is involved. Ventrac's Power Broom sweeps the gravel back where it belongs in your driveway.
Learn More
The NEW Standard in Sidewalk Snow
Browse Ventrac's list of snow removal products ready to tackle light to heavy snow.
Learn More
Snow Management Solution
Landscape Industry Consultant, Phil Harwood, describes why Ventrac is an ideal power unit for Landscape Contractors looking to manage sidewalk snow.
Learn MoreDownloads for LB540 Broom
V-Plus Warranty:
Commercial: 2 year*
