Maintain professional-grade baseball and softball fields with the Ventrac Ballpark Groomer and Renovator.
Adjustable components let you customize grooming depth and finish.
A drag attachment provides the final touch, leaving fields game-ready with a professional finish.
Spike Bar penetrates deep into the ground to loosen and mix materials helping to dry dirt and mix in new materials.
Adjustable leveling bar can be set at a certain depth or can be free to float.
Leaves behind an even, professional finish that enhances field aesthetics.
Perfect for both daily field maintenance and complete renovation projects.
The rear roller and leveling bar smooth out inconsistencies for a flat, even playing surface.
Ventrac grounds maintenance equipment has the unmatched ability to do light renovation and re-level fields so you can quickly and consistently maintain a smooth playing surface.
Adjustable scarifier tines penetrate the field to break up hardpan and improve soil texture.
Ideal for baseball, softball, and multipurpose athletic fields.
Diagram of the Ballpark Groomer and Renovator
Grounds maintenance professionals know the value of reducing or eliminating hand work and they appreciate premium results. This is what the Ventrac Ballpark Groomer brings to the table. Ventrac is the solution for efficient ball field maintenance that also elevates the image and quality of the facility.
While the Ballpark Groomer and Renovator are capable of properly taking care of all the infield needs, the advantages don't stop there. Using the tractor's versatility, grounds crews can hook up to other attachments and accomplish all of the other mowing, soil preparation, and cleanup needs at the facility. Ventrac is simply the best, most economical solution to maintaining a beautiful and functional ballpark.
Starting at $3,195
Starting at $2,995
One tractor to maintain an entire ball field - Ventrac Ballpark Groomer & Renovator. https://www.ventrac.com/
The purpose of a ballpark groomer is to keep fields playable, safe and in good condition for all those playing the game. The Ventrac Ballpark Groomer and Renovator attachments are perfect for schools and municipalities that have several ball fields to maintain and limited man power. Efficiently and regularly maintaining fields with only a single operator can save dramatically on labor costs and time. Breaking in a field in early spring with a Ventrac Ballpark Groomer and Renovator allows for one operator to accomplish the task in a couple hours, which replaces a team of volunteers that might take over a day to complete.
Many people are maintaining these fields using basic equipment that does nothing more than drag the field. This is problematic because over time a traditional drag simply pulls the dirt to the outfield and does not completely fill in low spots on the surface of the field. This groomer and renovator combination assists with removing and preventing low spots, removing weed creep, performing basic field leveling, helping to dry out fields after a rainstorm and performing basic dragging.
The Ventrac Ballpark Groomer and Renovator consists of two separate attachments that we recommend using together, but can be purchased separately. Four basic configurations are suggested to assist with the following field conditions or objectives. The first configuration is for treating wet field conditions or fields with a dry, hard top surface. The second configuration can be used for weed management or edge line shaping. The third configuration is for infield leveling and low spot maintenance. And the final basic recommendation of settings is for finish grooming.
The three working components on the front renovator include the renovation blades, scarifier tines, and leveling bar. The blades are used to cut edge lines, cut weeds out and help remove high spots. Scarifier tines work in tandem with the renovation blades to break apart the loose material that flows over them. The tines can also be used to incorporate extra infield mix that has been spread on the field. While the leveling bar carries material to maintain a level surface or to fill in low spots
The rear groomer consists of a leveling bar, rear roller, spike bar and optional brush kit. When the rear attachment is used, the roller will always be on the ground. This is very important because this roller helps pack material into low spots and the application can be controlled by the addition of weights on the back of the groomer. The spike bar is used in wet conditions to help aid in the drying process and to break apart hard surface conditions. The optional brush kit is ideal for dry conditions to help leave a finished groomed surface.

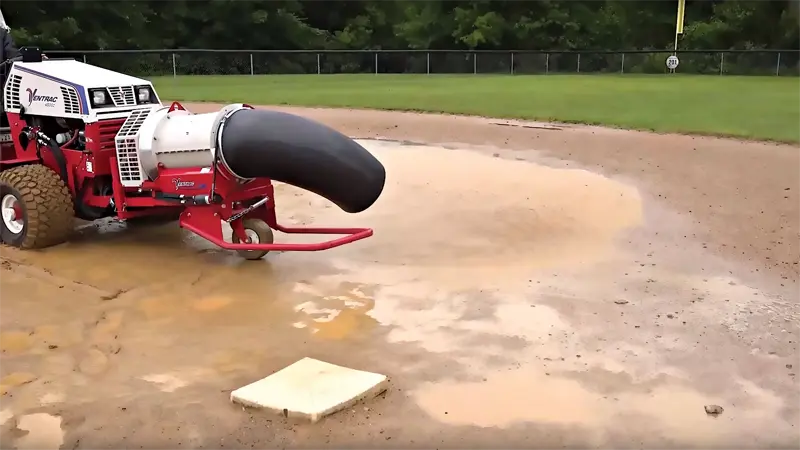

While most Ballpark Groomers are only built for a singular use, the Ventrac is a versatile tractor that can be used with a finish mower to maintain the outfield. Many schools and municipalities use a Ventrac for other applications around the property and find that the Ballpark Groomer and Renovator only saves them more time and labor. Other uses for Ventrac attachments on the ball field include use of the Turbine Blower for drying fields off after a heavy rainstorm. The Power Bucket moves new infield mix to anywhere on the field. The Power Rake attachment is great for fields that have heavy growth and need more renovation work at the beginning of the season.
Products featured in this video:
Ventrac 4500: https://www.ventrac.com/products/tractors/4500
Ballpark Groomer: https://www.ventrac.com/products/attachments/ballparkgroomer
Finish Mower: https://www.ventrac.com/products/attachments/msmtmu
Turbine Blower: https://www.ventrac.com/products/attachments/et200
Aera-Vator: https://www.ventrac.com/products/attachments/ea600
For more information, visit https://www.ventrac.com/
Find a dealer near you! https://www.ventrac.com/dealers
Get a FREE catalog! https://www.ventrac.com/contact/catalog
Subscribe here! https://www.youtube.com/channel/UC0aiC7V2JS3nh11R5tRuIUw
Connect with Us! Facebook - https://www.facebook.com/ventrac/ Instagram - @ventrac_tractors Twitter - @ventrac
#ventrac #ballfield
| Info | ||
|---|---|---|
|
Product Image
|
|
|
|
Model
|
||
|
Description
|
Renovator
|
Ballpark Groomer
|
|
Product Type
|
|
|
|
Sku
|
39.55280
|
39.55285
|
|
Price
|
$3,195
|
$2,995
|
| Dimensions | ||
|
Overall Width
|
56in
142.2cm
|
60.5in
153.7cm
|
|
Height
|
19in
48.26cm
|
26.25in
66.68cm
|
|
Weight
|
255lb
115.7kg
|
315lb
142.9kg
|
|
Overall Length
|
46in
116.8cm
|
19in
48.26cm
|
|
Overall Length with Brush Kit
|
-
|
23.5in
59.69cm
|
|
Overall Width with Brush Kit
|
-
|
75.5in
191.8cm
|
|
Overall Width with Drag Kit
|
-
|
73in
185.4cm
|
|
Weight of Brush Kit
|
-
|
451lb
204.6kg
|
|
Weight of Drag Kit with Steel Drag
|
-
|
137lb
62.14kg
|
|
Weight of Steel Drag
|
-
|
86lb
39.01kg
|
|
Weight of Drag Kit with Coco Mat Dra
|
-
|
135lb
61.23kg
|
|
Weight of Coco Mat Drag
|
-
|
84lb
38.1kg
|
|
Overall Length with Drag Kit
|
-
|
69.5in
176.5cm
|
|
Number of Spikes
|
-
|
28
|
|
Renovator Blades
|
18.5in Three Blades
46.99cm Three Blades
|
-
|
|
Cutting Depth Adjustment
|
Hydraulic
|
-
|
|
Cutting Depth (Maximum)
|
2.5in
6.35cm
|
-
|
|
Scarifier Spring Tines
|
28 Tines
|
-
|
|
Wheels
|
9in flat free
22.86cm flat free
|
-
|
