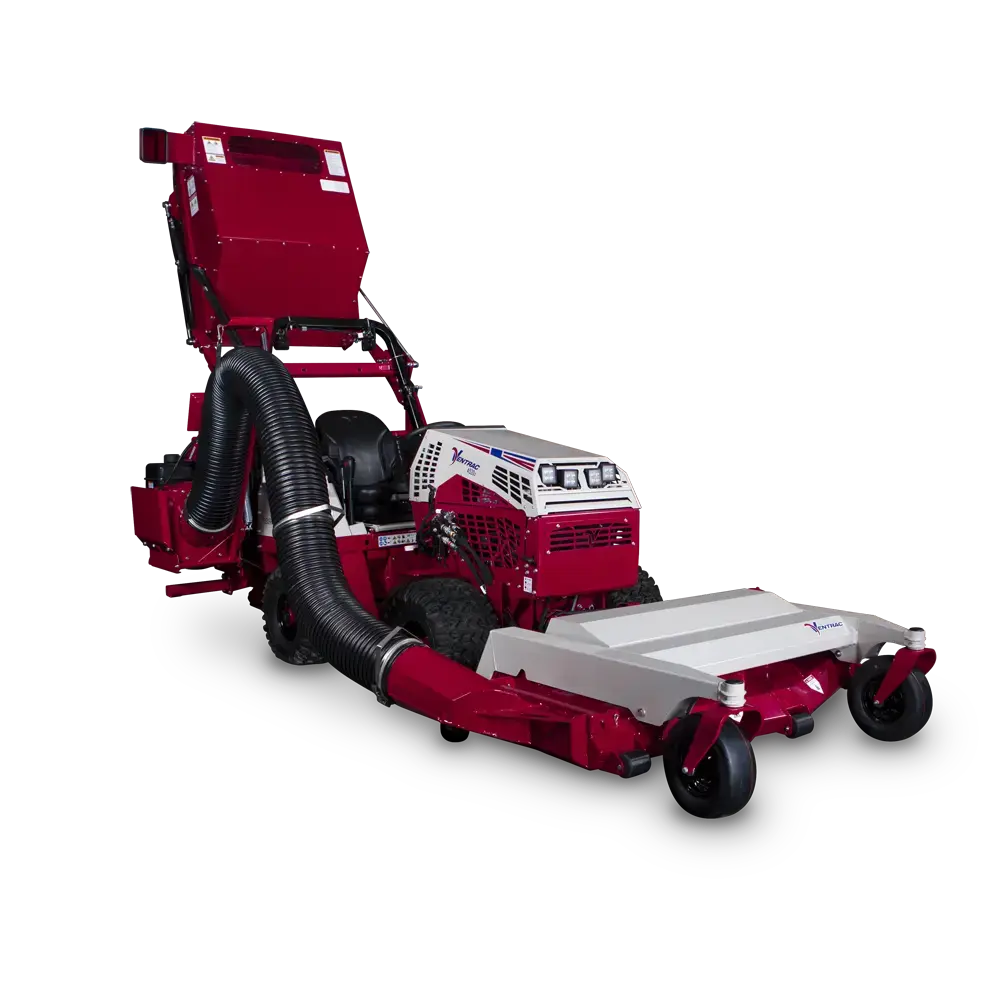

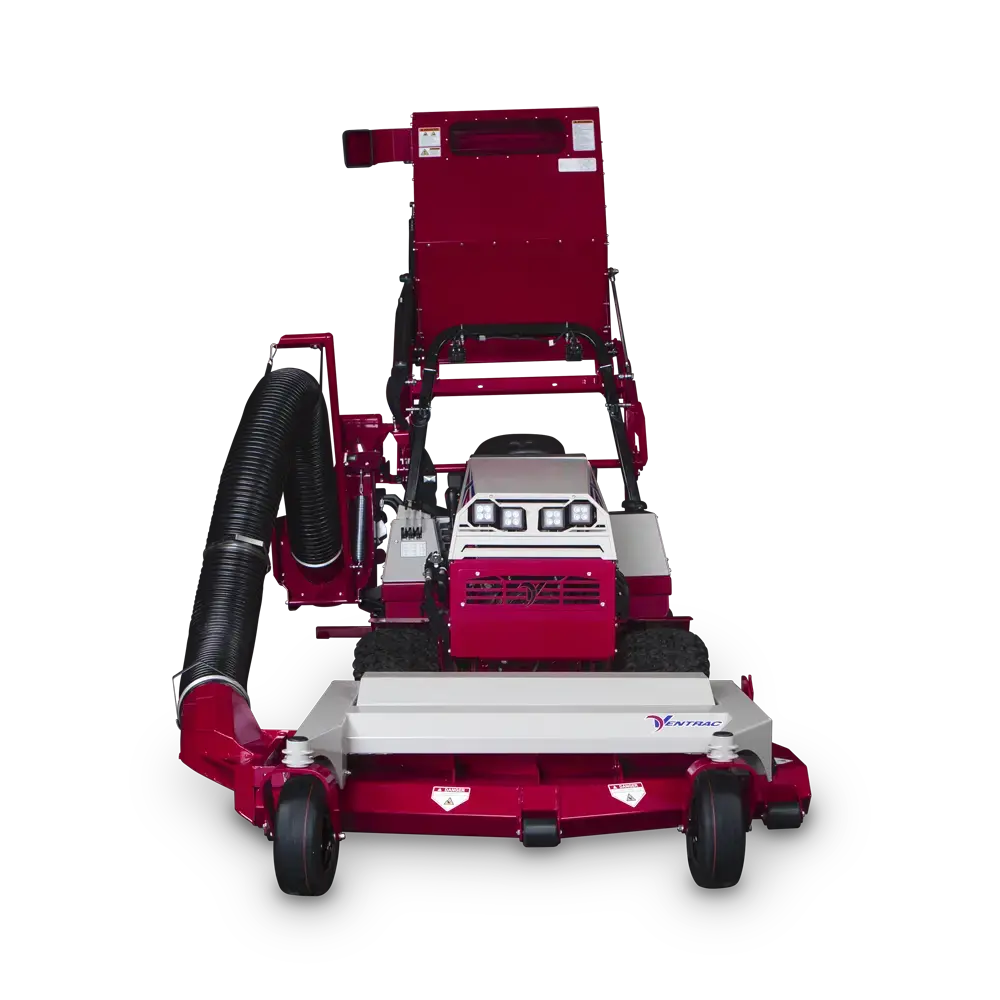

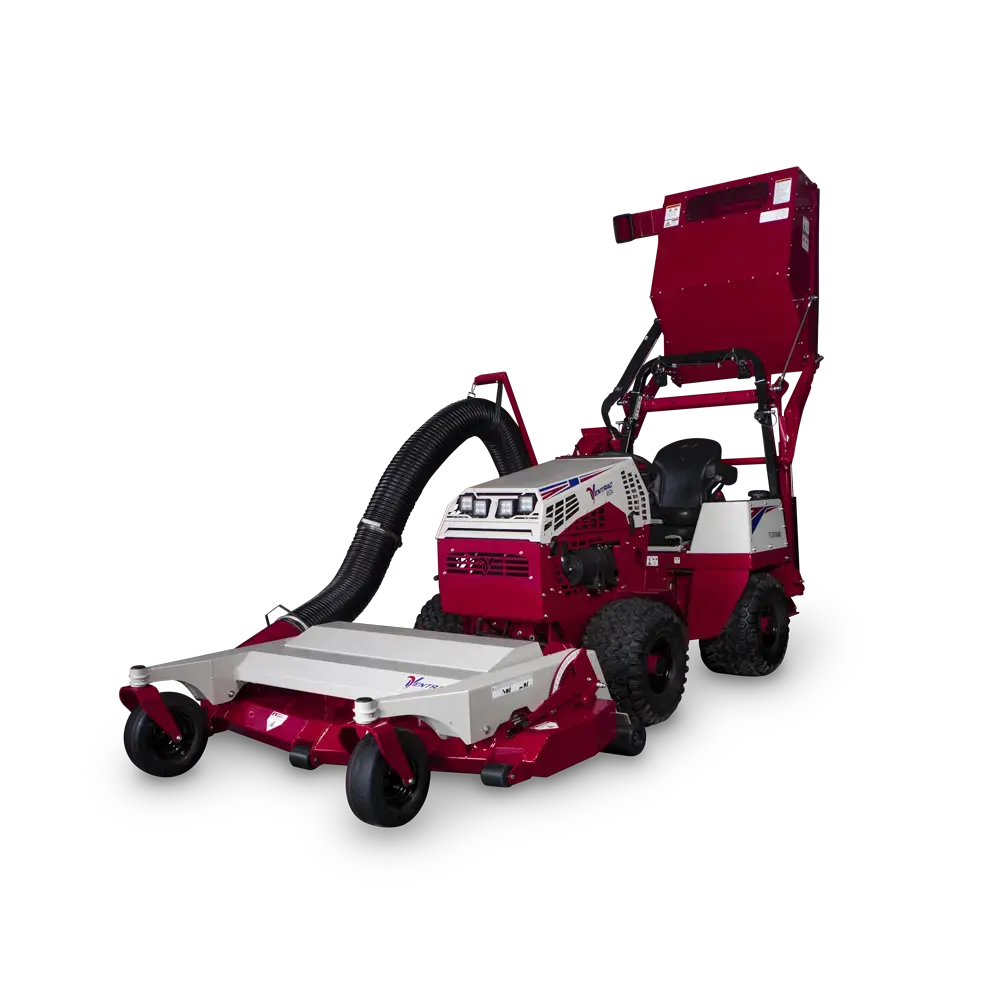

The Ventrac RV602 VACUUM COLLECTION SYSTEM* is for grass and leaf collection, and it consists of three primary components:
- The Bin Assembly - mounts to the rear of 4000 series tractors.
- The Suction/Blower System - powered by a 10HP Vanguard engine with electric start for efficient pickup and superior performance
- High Lift Mechanism - hydraulically raise the collection bin up to five feet and dump to unload the contents into a garbage bin or trailer.
The vac requires a docking station when dismounted. A storage stand with caster wheels is used when it is to be parked or moved around on a level floor. When loaded onto truck, a rigid base assembly is anchored to the floor that holds the vac firmly for transport.
Other Features include:
- All steel construction
- Hydraulic lift and dump
- Electric start engine
- Collection boot is quickly and easily attached to the mower deck
- Handle on hose and hose end for ease of vacuuming flower beds, etc.
- Hose clamp for attaching hose to collection boot is an over-center clamp for ease of connecting
- Storage stands, complete with caster wheels, for ease of attaching or storage
*For optimal performance, use with a 60" deck.
Not available for sale in California
- RV602 COLLECTION VACUUM 39.55361 Starting at $9,340 MSRP*

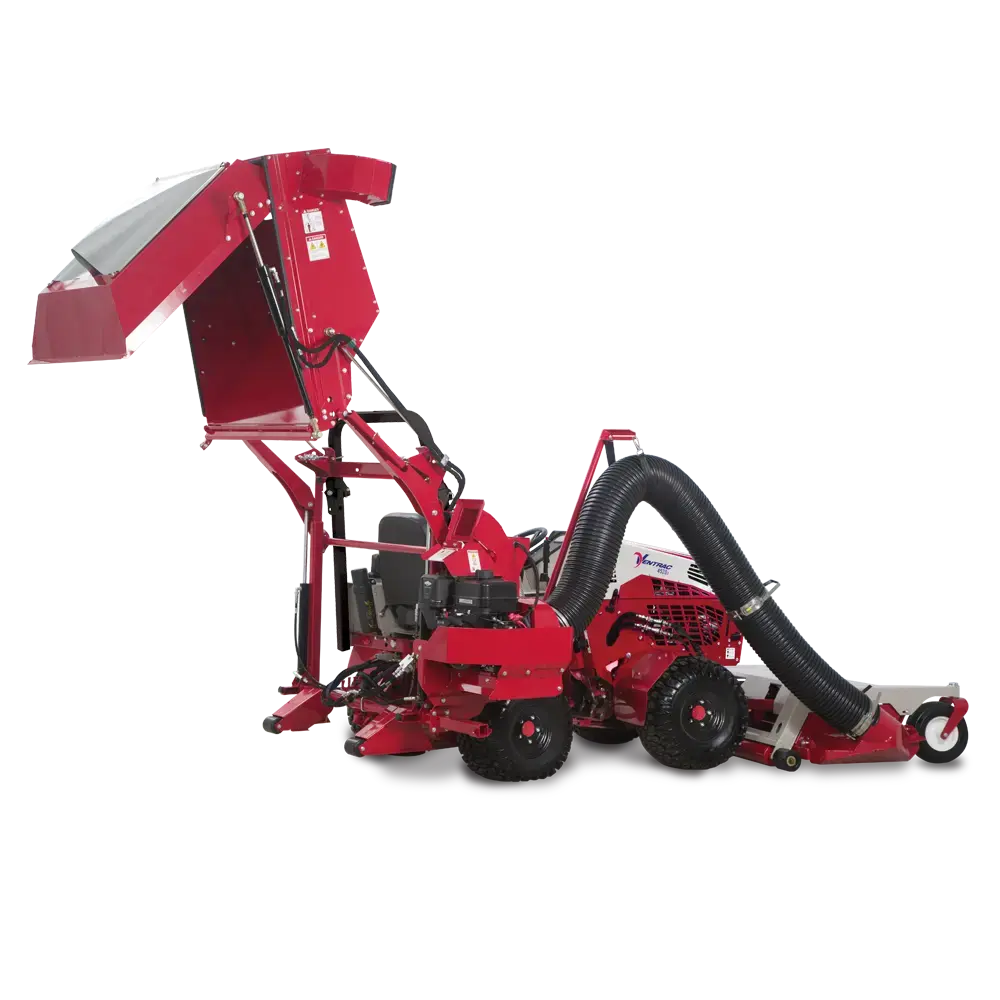

![Ventrac Vac Collection System - Collection Bin raises to five feet to allow to empty into trailers.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_Studio.jpg)
![Ventrac RV602](https://cdn.venturepro.com/images/ventrac/g/400/RV_Maryland_8378.jpg)
![Ventrac RV602](https://cdn.venturepro.com/images/ventrac/g/400/RV_Maryland_8289.jpg)
![Closeup of Vanguard Engine for RV602 - The 10 HP Briggs and Stratton Vanguard engine that powers the vacuum features and electric start.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_Studio_5810.jpg)
![Ventrac 4500 Collecting Leaves using RV602 Vacuum - First the mowing deck shreds leaves and then the smaller particles are pulled into the large, rear-mounted bin. This process allows for maximum use of storage space. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_Orrville_8168.jpg)
![Ventrac 4500 Dumping Leaves from the Vacuum System Bin - Using hydraulic lift, the RV602 is capable of lifting a full bin to five feet for easy dumping of materials into a variety of trailers. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_CampLuz_2901.jpg)
![Ventrac 4500 and Vacuum Collection System - Mow your grass leaving only a beautiful cut lawn behind and not piles of clippings.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_R57_6111.jpg)
![Ventrac 4500 Mowing with 60 inch Deck and Vacuum System - Mowing your lawn with the Ventrac Vacuum System further enhances that professional look that Ventrac is known for.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_R57_6179.jpg)
![Ventrac 4500Y using the RV602 Vacuum - The 10 HP Vanguard engine by Briggs and Stratton powers the Vacuum leaving nothing behind.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_R57_6388.jpg)
![Ventrac 4500 and RV602 Vacuum Collection - The collection bin for the RV602 Vacuum System is capable of holding 16 cubic feet of materials meaning fewer trips to the trailer, saving you time.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_R57_6555.jpg)
![Ventrac 4500 Sailing along with the RV602 at work - The Vacuum System for the Ventrac 4500 is so powerful that even at faster speeds it still does its job.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_R57_6548.jpg)
![Ventrac 4500 Dumping Clippings from the Vacuum System Bin - The bin can be lifted five feet and has enough overhang to extend its reach over a truck or trailer.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_Westman_6016.jpg)
![RV602 Vacuum Collection System on the Ventrac 4500 - With a 16 cubic foot capacity you'll spend less time making trips to empty the bin.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_Westman_6084.jpg)
![Ventac RV602 - RV600 Vacuum Collection System](https://cdn.venturepro.com/images/ventrac/g/400/RV602_JohnFoxLake_112119_0336.jpg)
![Docking Station Diagram - Detail of docking station for the RV602 Vacuum Collection System.](https://cdn.venturepro.com/images/ventrac/g/400/GO---Docking-Station.jpg)
![Ventrac 4500 Mowing and Vacuuming at Once - With the RV602 Vacuum System you can mow grass and clear the turf of clippings and leaves at the same time, a great addition for municipal mowers. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_Orrville_8012.jpg)
![Ventrac 4000 series - RV600 Vacuum Collection System. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV600_2482.jpg)
![Ventrac 4500Y Mowing and Sweeping - Even thicker, higher grass can be easily swept up by the RV602 Vacuum System](https://cdn.venturepro.com/images/ventrac/g/400/RV602_Westman_6036.jpg)
![Ventrac 4500 Mowing and Leaf Collecting - Ventrac's powerful mowing deck and vacuum working together to make your yard look its best no matter what season, making it the best municipal mower. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_Orrville_8049.jpg)
![Ventrac 4500 Moving Leaves with the RV602 - A 16 cubic foot capacity bin allows you to really pack the leaves getting the job done in less time. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_CampLuz_2922.jpg)
![Ventrac RV602 Vacuum System on the 4500 - All steel constructionHydraulic lift and dumpElectric start engineCollection boot is quickly and easily attached to the mower deckHandle on hose and hose end for ease of vacuuming flower beds, etc.Hose clamp for attaching hose to collection boot is an over-center clamp for ease of connectingStorage stands, complete with caster wheels, for ease of attaching or storage. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_CampLuz_2972.jpg)
![Ventrac 4500 Handles Fall with the RV602 - The Vacuum System for the Ventrac 4500 makes light and even fun work out of fall leave gathering. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_CampLuz_2989.jpg)
![Ventrac 4500 Dumping Leaves from the Vacuum System Bin - Easily lift the collection bin five feet in seconds to empty it and back in position to get underway again. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_CampLuz_3029.jpg)
![Ventrac 4500 Maintaining Property with RV602 - The Vacuum System works with the powerful Ventrac municipal mowing deck to pick up even layers of leaves that may have been trampled and flattened. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_CampLuz_3098.jpg)
![Ventrac 4500 Fighting Fall Leaves with the RV602 - The Ventrac 4500 along with Vacuum Collection System can remove even thick blankets of leaves from various types of turf. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_CampLuz_3111.jpg)
![Ventrac 4500 Collecting Leaves in Fall - The vacuum system even works on slopes thanks to Ventrac's industry leading slope ratings. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_CampLuz_3136.jpg)
![Filling a Trailer with the Ventrac RV602 - Hydraulic lift and long reach makes it easy to drop 16 cubic feet of materials into any trailer or truck bed. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/RV602_CampLuz_3161.jpg)
![Ventrac RV600 - RV600 Vacuum Collection System](https://cdn.venturepro.com/images/ventrac/g/400/RV600-Cover_isolate.jpg)
Ventrac Benefits
High Lift
![](/images/products/primary/500/RV602_CampLuz_2901.jpg)

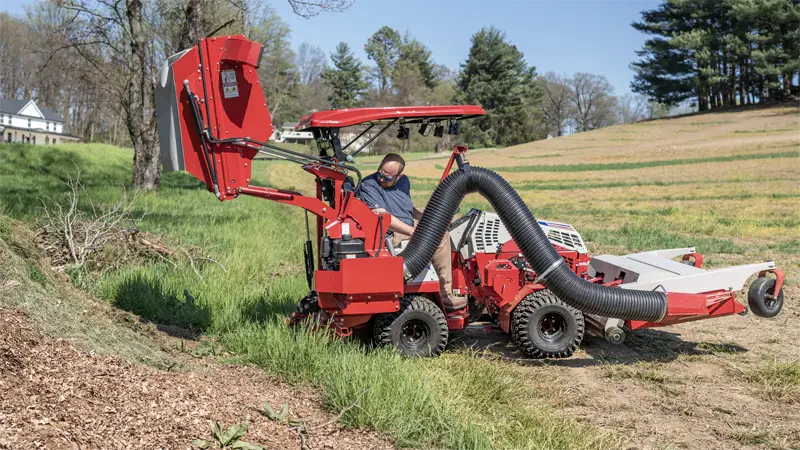

The RV602 has a debris containment bin that hydraulically raises up to five feet to easily place collected materials into a dump trailer, pickup bed or on top of the compost pile.
Leave Nothing Behind
![](/images/resources/RV_Maryland_8289.jpg)
The Vacuum Collection System is the professional choice for quickly clearing clippings that blanket the yard.
Easy Disconnect
![](/images/products/primary/500/RV602_FoxLake_2019.jpg)
A quick disconnect vacuum hose makes cleaning flower beds, hedges, steps and other un-drivable areas easy.
Collect Mulched Grass & Leaves
![](/images/products/primary/500/RV602_R57_6555.jpg)
rv602 SPECIFICATIONS
Specifications | 39.55361 |
---|---|
Info | |
Picture | ![]() |
Sales Model | RV602 |
Full Description | RV, RV602 Collection Vacuum |
Product Type | Attachment |
Engine | |
Engine Manufacturer | B&S Vanguard |
Horsepower | 10 hp |
Fuel Type | Gas |
Engine Type | Single Cylinder, Horizontal Shaft |
Engine RPM | 3600 |
Category | |
4000 Series Mount | |
Dimensions | |
Length | 40 in |
Overall Width | 65 in |
Height | 53 in |
Weight | 525 lbs |
General | |
Max. Capacity | 16 ft3 |
Lifting Height | 5 ft (60 inches) |
Lift Capacity | 300 lbs |
Lifiting Time | 5 seconds |
Width with Tractor | 66 in |
Length with Tractor no mower | 104 in |
Recommended capacity (for best resul | 13 ft3 |
Lowering Time | 4 secs |
Impeller, Blades | 5 blade |
