This product has been discontinued.

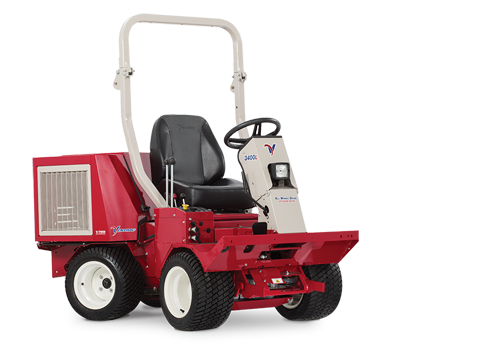

Good things come in small packages and the same is true for the Ventrac 3400L. The 3400L features a 20HP Gas 2-cyl(627cc) B&S Vanguard Engine.
This power-packed unit features All-Wheel-Drive, Power Steering, Hydrostatic Drive, and more. The Ventrac Mount System allows you to change attachments quickly and efficiently, moving from job to job with minimal effort.
Equipped with a patented Tandem Drive Train, the 3400L efficiently transfers power to where it's needed for unparalleled performance and power.
Also standard on the 3400L is Ventrac's patented S.D.L.A. control, which allows for easy control of Speed, Direction, Lift and Auxiliary function all with one hand.
Combine these features with a tight 28 inch (71 cm) turning radius and you will find the 3400L can tackle jobs reserved for much larger, less maneuverable machines.
View the Ventrac 3400 Overview
- 3400L VANGUARD M38 39.31500
- 70.3040-99 KIT, SUSP SEAT 3400 FACTORY
- 70.3019-99 KIT, TILT STEERING 3400 FACTRY
- 70.3014-99 KIT, WEIGHT TRANSFER 3400 FCTRY
- 70.3052-99 KIT, WHEEL 18" TURF FACTORY
![Ventrac 3400L all wheel drive compact articulating tractor - Shown with optional Turf Tires.](https://cdn.venturepro.com/images/ventrac/g/400/3400L_studio_1735.jpg)
![52 Inch Cut Flip Up Mower Deck - The flip up deck allows easy access to service the mower blades.](https://cdn.venturepro.com/images/ventrac/g/400/LM600_studio_mulchkit_1803.jpg)
![Ventrac 3400 finish mower deck - Easily create professional looking stripes in your yard while precision cutting adds a more uniform and manicured look](https://cdn.venturepro.com/images/ventrac/g/400/LM600_Nussbaum_0395.jpg)
![LM600 Mower deck on Ventrac 3400 - Easily maintain that professional look even on hills and uneven ground using the Ventrac mowing deck](https://cdn.venturepro.com/images/ventrac/g/400/LM600_OrrHome_1017.jpg)
![Ventrac 3400L tight turning radius - The Ventrac 3400 is one maneuverable tractor with its center-point articulation and AWD transmission.](https://cdn.venturepro.com/images/ventrac/g/400/LM600_Nussbaum_9236.jpg)
![60 inch cut mower deck for Ventrac 3400 - the Ventrac mowing deck cuts evenly over dips, low spots, and uneven ground](https://cdn.venturepro.com/images/ventrac/g/400/LM600_OrrHome_9946.jpg)
![Ventrac 3400 mowing deck - Golf course quality stripes made possible by Ventrac and, with a 60 inch cutting width, in less time](https://cdn.venturepro.com/images/ventrac/g/400/LM600_OrrHome_0768.jpg)
![Precision Cut Mower Deck with Ventrac 3400 - Highly maneuverable 3400 along with the precision cut mower deck gets you around hazards easier and safer without sacrificing cutting quality](https://cdn.venturepro.com/images/ventrac/g/400/LM600_Nussbaum_9222.jpg)
![Ventrac 3400 with LM600 Mowing Deck - The precision cut of the Ventrac mower deck maintains a uniform look even on uneven ground](https://cdn.venturepro.com/images/ventrac/g/400/LM600_OrrHome_0727.jpg)
![Ventrac 3400 with LM600 mower - Mowing on a hill is safer with the Ventrac 3400 capable of navigating 20 degree slopes maintaining an even cut](https://cdn.venturepro.com/images/ventrac/g/400/LM600_OrrHome_0989.jpg)
![Ventrac 3400 Power Bucket - Compact bucket helps move dirt, mulch, etc. into tighter places](https://cdn.venturepro.com/images/ventrac/g/400/HE302_LH_OrrHome_0891.jpg)
![Power Bucket for Ventrac 3400 - Ventrac power bucket with the 3400 is maneuverable enough to let you put mulch where you want it](https://cdn.venturepro.com/images/ventrac/g/400/HE302_LH_OrrHome_0914b.jpg)
![Ventrac 3400 power bucket - Over three and a half cubic feet of bucket capacity makes moving whatever you need easier.](https://cdn.venturepro.com/images/ventrac/g/400/HE302_LH_OrrHome_0949.jpg)
![Ventrac 3400 with power bucket - Easy debris removal that maintains your field of vision allowing better precision and less guesswork](https://cdn.venturepro.com/images/ventrac/g/400/HE302_LH_Venture_1103.jpg)
![Ventrac 3400 power blower - Rounding up fallen leaves is much easier with the Ventrac power blower. Jobs made simple for municipal mowers. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/LA160_OrrPark_0520.jpg)
![Power Blower for Ventrac 3400 - Move large amounts of leaves quickly and efficiently](https://cdn.venturepro.com/images/ventrac/g/400/LA160_OrrPark_0541.jpg)
![Ventrac 3400 with power blower - Less work and back strain than a handheld or backpack blower and faster too, Ventrac offers solutions for leaf and municipal mowing solutions alike. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/LA162_OrrCemetary_0221.jpg)
![Ventrac 3400 stump grinder - Easy to use stump grinder controlled from the tractor with no special setup required](https://cdn.venturepro.com/images/ventrac/g/400/LC150_Venture_1136.jpg)
![Stump Grinder for Ventrac 3400 - Gets into tight or hard to reach places easier while easy to see for precise grinding](https://cdn.venturepro.com/images/ventrac/g/400/LC150_Venture_1157.jpg)
![Ventrac 3400 with 60 inch cut mower deck - Mowing your lawn takes less time with five feet of cutting width per pass, using Ventrac's finish mower deck.](https://cdn.venturepro.com/images/ventrac/g/400/LM600_Nussbaum_0324.jpg)
![Ventrac 3400 with Mower Deck - Ventrac mower decks are easy to use and produce professional results every time](https://cdn.venturepro.com/images/ventrac/g/400/LM600_Nussbaum_9309.jpg)
![Ventrac 3400L with Power Blower - The blower housing can be rotated 180 degrees with the standard hydraulic motor. This allows the operator to move debris in the desired direction without hindering operation. Two gauge wheels maintain a consistent distance from the surface. Commercial leaf removal equipment made for you.](https://cdn.venturepro.com/images/ventrac/g/400/LA160_OrrPark_0512_b.jpg)
3400l SPECIFICATIONS
Specifications | 39.31500 |
---|---|
Info | |
Picture | ![]() |
Sales Model | 3400L |
Full Description | LH, 3400L Vanguard M38 |
Product Type | Tractor |
Engine | |
Engine Manufacturer | B&S Vanguard |
Model # | Vanguard 385777 |
Horsepower | 20 hp |
Peak Torque | 34 ft-lbf @2800rpm |
Engine Disp. | 627 cc |
Num. of Cylinders | 2 |
Cooling | Air |
Fuel Capacity | 5 gal |
Fuel Type | Gas |
Drive System | |
Drive | AWD All Wheel Drive |
Travel Speed | 7 mph, 4 mph reverse |
Dimensions | |
Overall Width | 401⁄2 in |
Overall Length | 76 in |
Height (ROPS up) | 72 in |
Height (ROPS down) | 60 in |
Wheelbase | 38 in |
Weight | 1000 lbs |
Tires | |
All Terrain | |
Turf | |
General | |
Turning Radius | 28 in |
Ground Clearance | 41⁄2 in @ Center Pivot |
Oscillation amount (@wheel) | 31⁄2 in |
